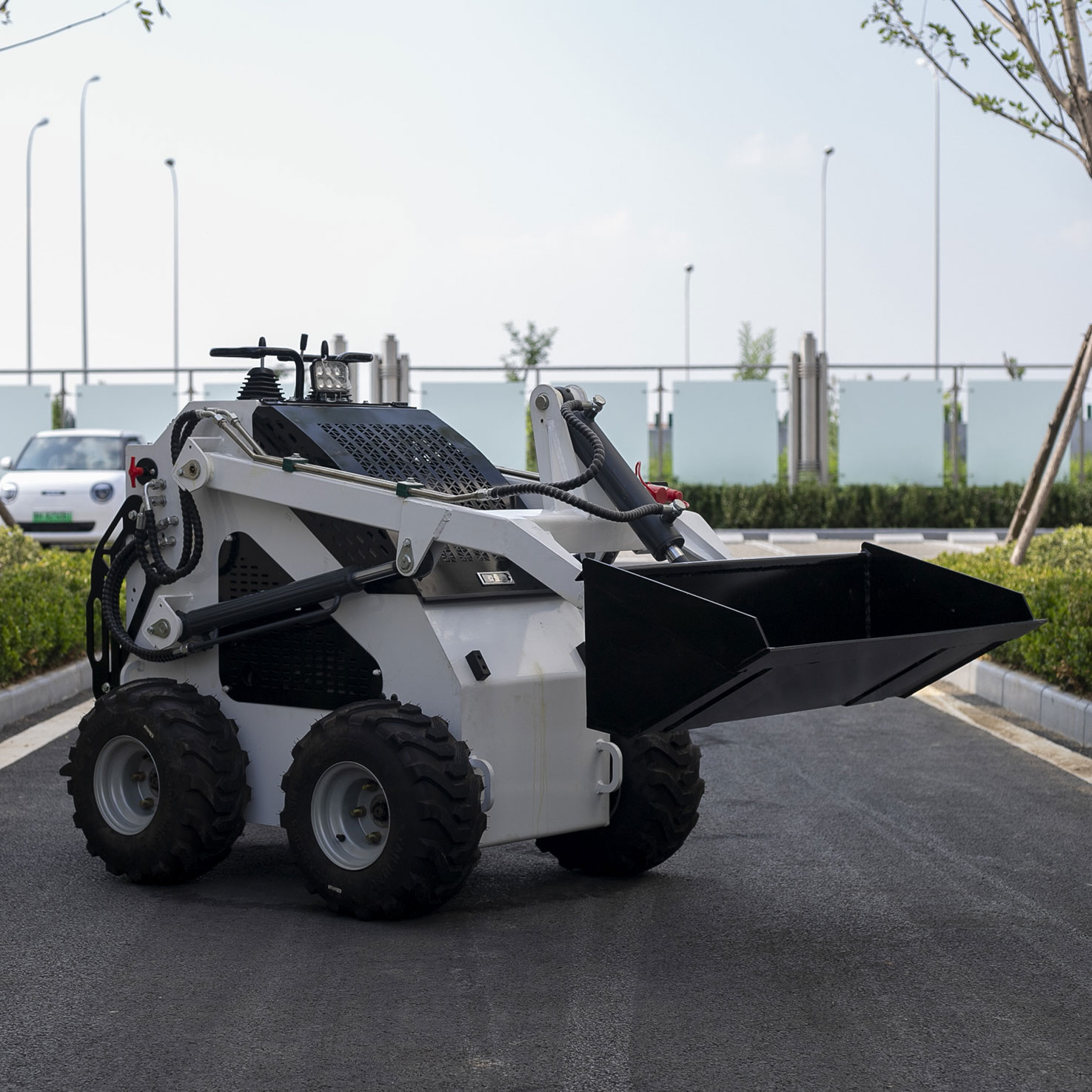

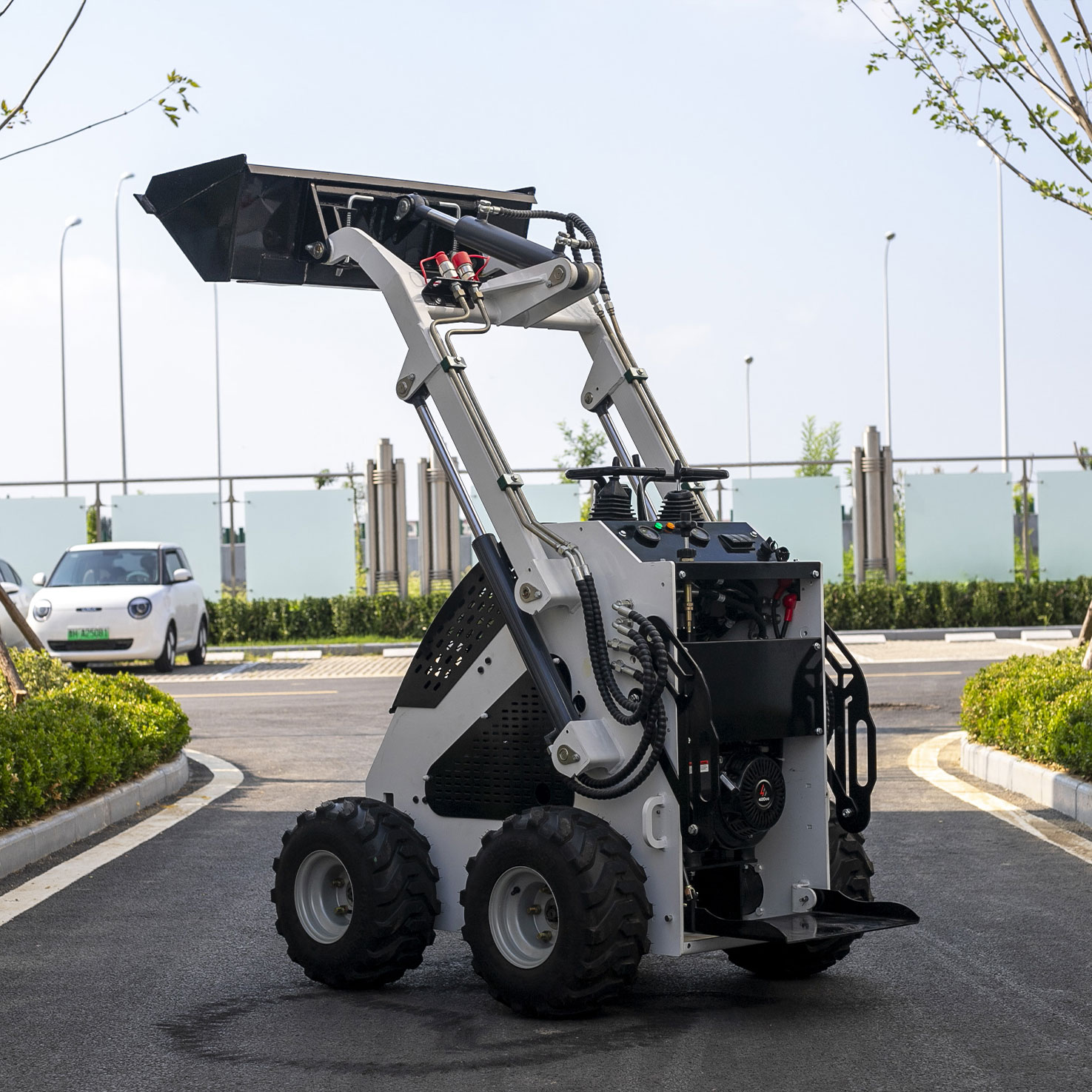

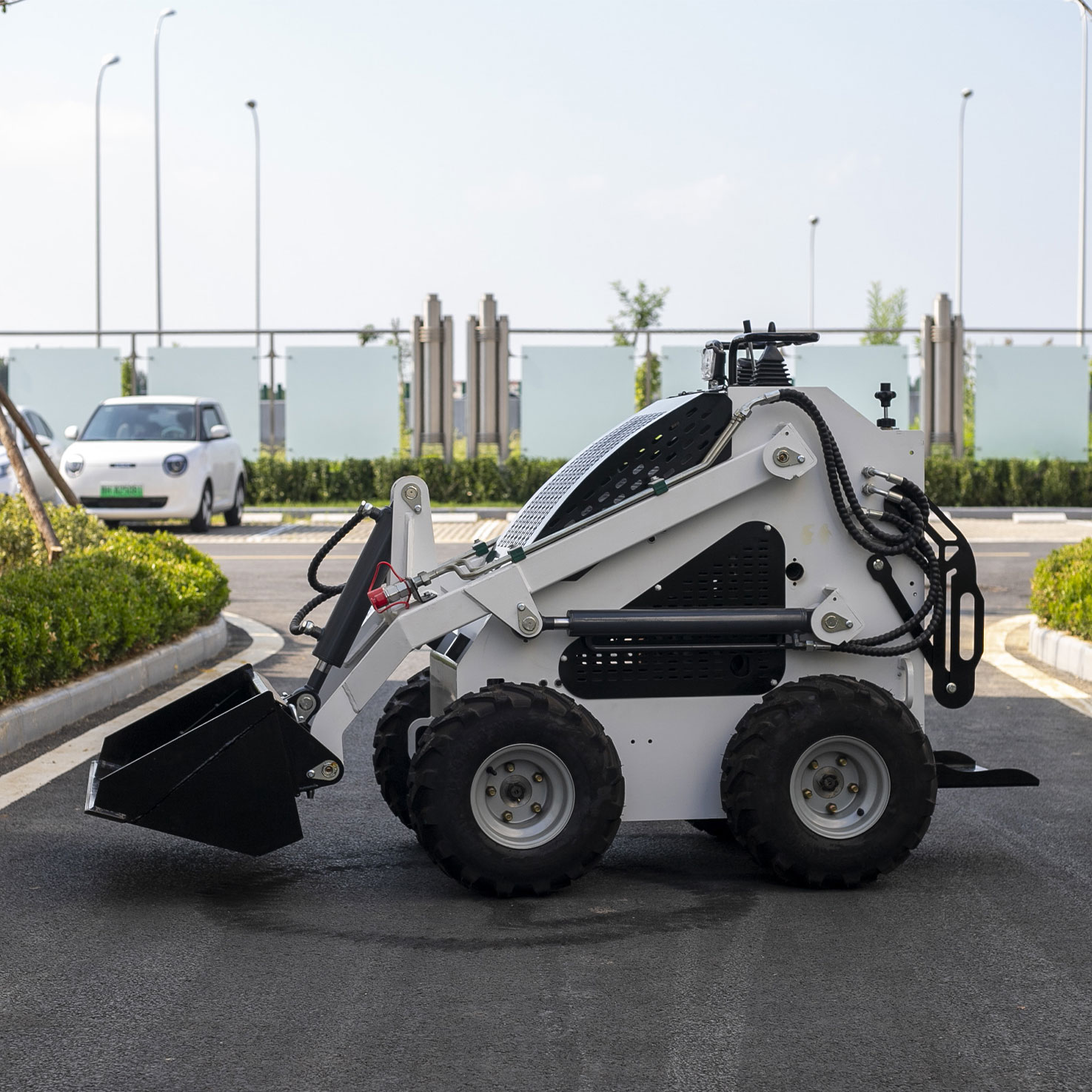

KID STEER LOADER S360
KID STEER LOADER S360
Product Detail
产品用途 PRODUCT APPLICATION
主要用于作业场地狭小、地面起伏不平、作业内容变换频繁的场合。适用于基础设施建设、工业应用、码头装卸、市区街道、住宅、谷仓、畜舍、机场跑道等，同时还可作为大型工程施工机械辅助设备使用。Itis mainly used in situations where the working site is small, the ground is uneven, and the work content changes frequently. Itis suitablefor infrastructure construction, industrial applications, dock loading and unloading., urban streets, residential buildings, barns, livestocksheds, airport runways, etc. It can also be used as auxiliary equipment for large-scale engineering construction machinery.
性能特点 FEATURE
小巧灵活，便于小地形、空间狭窄作业;
Compact and flexible, convenient for small terrain and narrow space operations.
操作简单便捷，运输方便;Simple and convenient operation, convenient transportation.
采用优质加厚钢材，运用喷塑工艺处理，防锈耐腐;
Use thicker high-quality steel, apply plastic molding process, prevent rust and anti-corrosion
360度车身自由旋转，灵动机身为户外工作带来便利。
The 360-degree body rotates freely, and the smart body facilitates outdoor work.
Specifications
型号Model S360
基本性能参数Basic performance parameters
操作质量Operating weight 880kg
铲斗容量Bucket capacity 0.1m3
爬坡能力Climbing ability 25°
最大崛起力Maximum breakout force 3.5KN
额定载荷Rated load 200kg
最大载荷Maximum load 300kg
行驶速度Travel speed 0-6km/h
车体宽度Vehicle width 1000mm
额定压力Rated pressure 16Mpa
铲斗宽度Bucket width 1050mm
最大装载高度Max loading height 1680mm
最大卸载高度Max dumping height 1367mm
最大操作高度Max operating height 2400mm
至铲斗销高度Height to bucket pin 1840mm
铲斗在最高时翻转角度Max height bucket dump angle 63
最小高度Min height 1300mm
离去角Departure angle 21
离地间隙Ground clearance 130mm
卸载距离Dumping distance 258mm
轴距Wheelbase 710mm
尺寸Dimensions
外形尺寸Overall dimensions 2130*1050*1300mm
含铲斗长度Length including bucket 2130mm
不含铲斗长度Length excluding bucket 1726mm

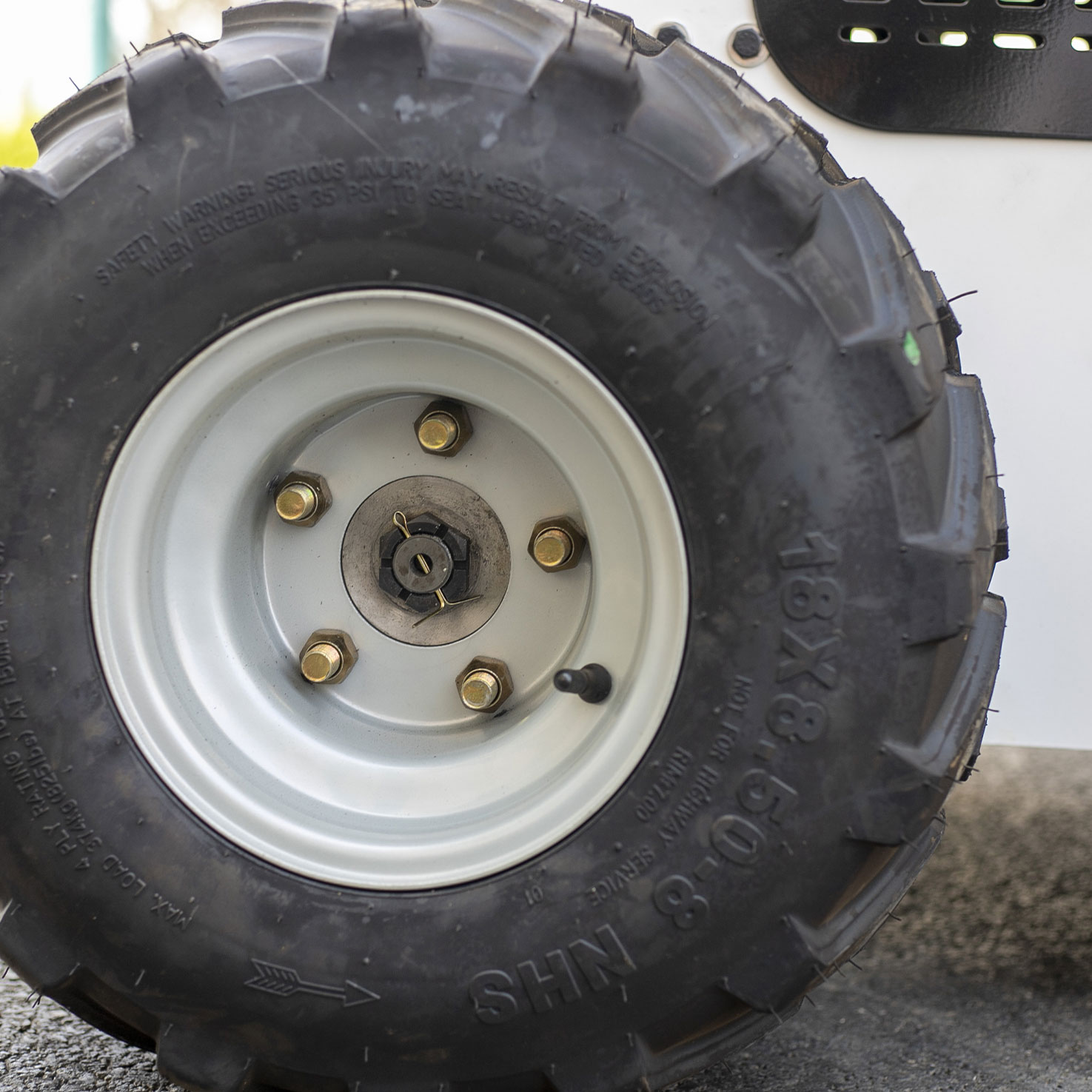

轮胎型号Tire model 18*8.5-8
发动机Engine
品牌Brand 电动/科普/润通/百利通 Lithium electricity/KOOP/Rato/B&S
型号Model 铅酸电池/192FH/R420D/XR13.5 Lead-acid battery/192FH/R420D/XR13.5
额定功率 Rated power 6kw,72V,125ah/7.6(7)/7.9/9.92kw
气缸 Cylinder 1
摄入方式 Intake method 自然吸气 Natural inhalation
排放标准Emission standard EPA/ERUO5
燃油箱容积 Fuel tank capacity 5L
